SKYKOMISH SUNRISE ASSEMBLY INSTRUCTIONS
|

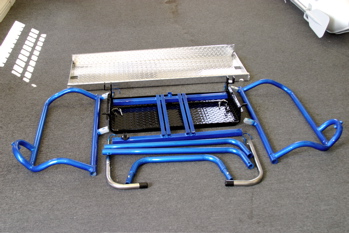

Skykomish Sunrise Components
|
|

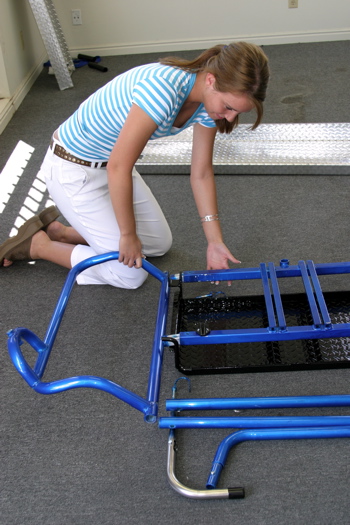

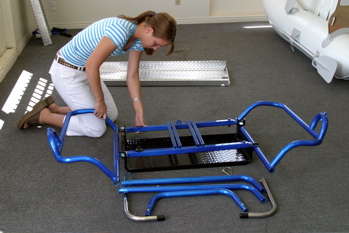

Slide right hand crossover frame section onto main frame section and insert two springer clips. Parafin wax applied to these joints will facilitate this procedure. Slide joints in evenly to reduce binding.
|

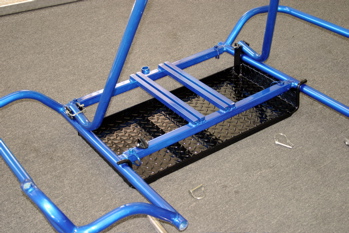

Slide standing platform onto the rails of the crossover frame on both sides and slide opposite crossover frame into joints and insert springer clips.
|
|

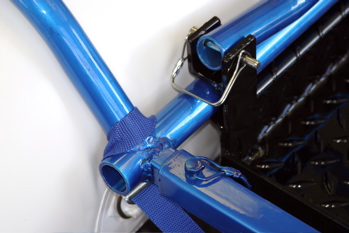

Install lean bar into brackets on the rear of your standing platform and insert square springer clips. | |

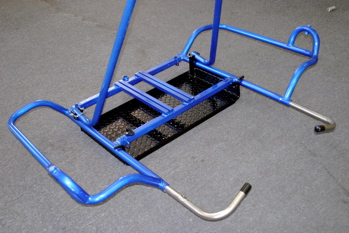

Insert stainless foot rests with the use of push buttons. Note: Make sure the anchor pulley is on the right side and footrest angle up. | |
|
Pump up pontoons to 3/4 pressure. |
Center pontoons on frame using "D" rings and logo as reference. | |
|

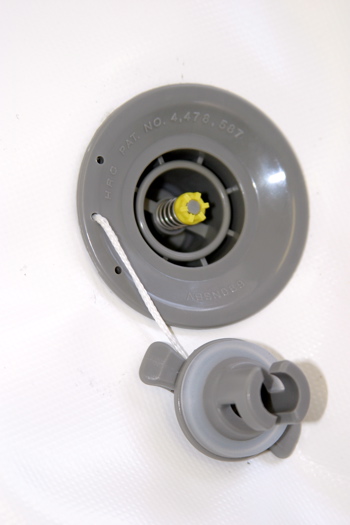

NOTE: Halkey Roberts valve in the deflation position. |
|
Halkey Roberts valve in the inflation position. Valves can be actuated by depressing yellow plunger in the middle of the valve. Push down and turn to the right to deflate. Push down and turn to the left to inflate. |
Clear plastic adapter inserted into valve. Adaptor will pop out automatically when approximately three pounds pressure is achieved. | |

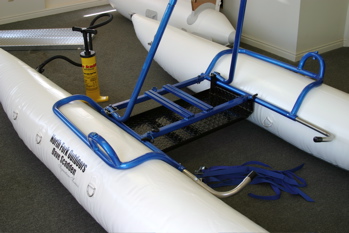

Frame in correct position ready to strap into place with cam straps. | |

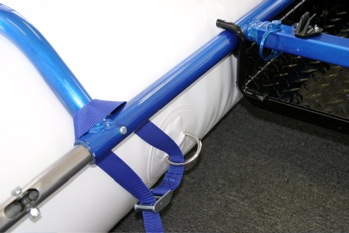

Correct strapping procedure for inside rear "D" ring. | |
|

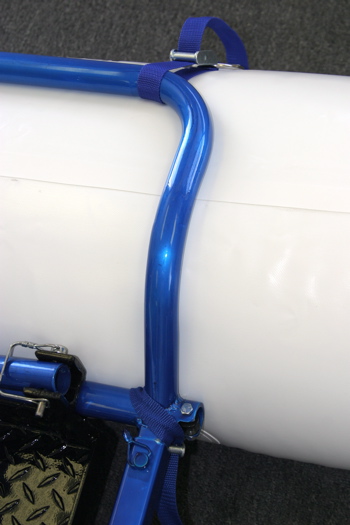

Correct position for outside rear strap. |

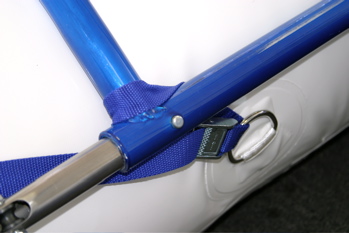

Correct strapping procedure for front "D" ring. | |
Strap pulled tight. | |

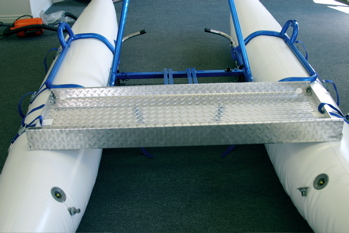

Rear deck strapped into place. | |

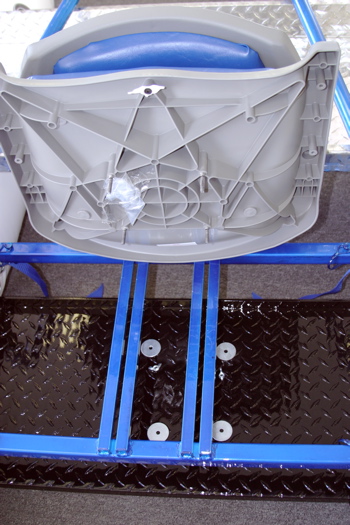

Seat studs slide into slots on main frame section and allow for complete fore and aft adjustability. | |
Wing nuts and washers secure seat to adjustable rails. | |
|

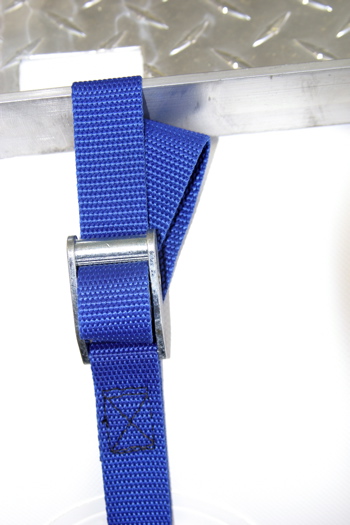

Excess strap ends can be inserted into slot in cam buckles and folded and tucked away. |
|
Excess strap ends tucked away. |
Correct side pocket strapping procedure. | |
Strapping pockets on angles allows sliding deck to slide freely uninhibited by straps. | |
|

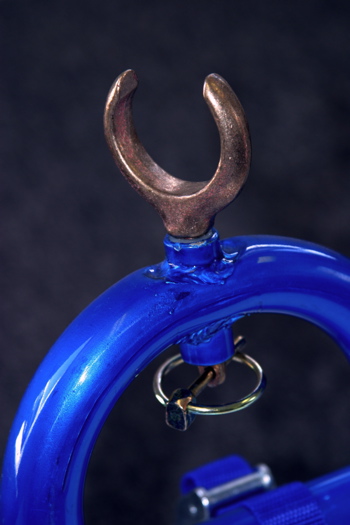

Correct installation of bronze oar lock with affixed clevis pin. |

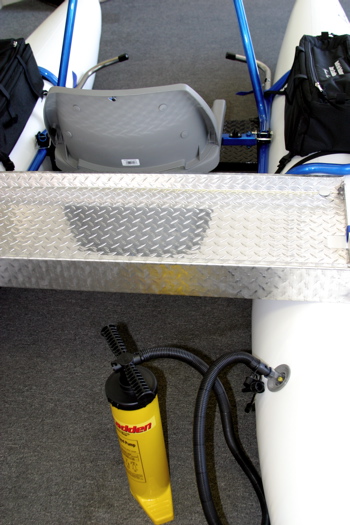

With everything installed you are now ready to top off your pontoons. We recommend three pounds air pressure. | |
|
Standing platform and lean bar in forward position ready to stand up and sight fish. |
Correct installation of wheel assembly. | |
Detailed photo of standing platform and straps. | |
Oar rite and oar sleeve slipped into bronze oar lock. | |
Correct installation of oar sleeve and oar rite. | |

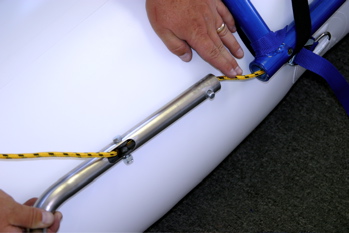

To install anchor rope, pull right side foot rest out of frame and run rope through the frame and out the back of the frame through the rear roller. | |
Make sure rope runs through the rear Delpin roller. | |
|
Install anchor bracket to underside of rear deck. Run rope through roller and attach anchor. |
|
Rope is secured into rope cleat alongside your seat. Extra rope is coiled and stored in the side bag mesh pocket. |
